Use the local Web UI¶

pchronicle serve provides a loopback-only, read-only workspace for browsing Datasets, drilling into Runs, analyzing results, and inspecting Lance storage. The screenshots and examples on this page were produced directly by:

./target/release/pchronicle serve tmp/test/ data/ --listen 127.0.0.1:9980

After the listener is ready, open http://127.0.0.1:9980/. The homepage is the landing page. Warehouse and Open Warehouse enter Datasets. Deep links such as /?page=catalog still open the warehouse directly. Repeatable --home-link TEXT=PATH capsules appear next to Warehouse; PATH must be a same-origin relative path. This command mounts two Datasets. Because neither has an explicit name, the UI derives test and data from the last path component. Give mounts stable UI and SQL schema names when they will be reused:

./target/release/pchronicle serve \
  test=tmp/test data=data \
  --listen 127.0.0.1:9980

Add --open to open the system browser after the listener is ready. The server accepts loopback addresses only. Browsing, querying, and refreshing through the UI or API do not modify a mounted Dataset.

Workspace map¶

The left rail separates the common tasks into five surfaces. Click the pC mark to return to the homepage.

Local at the bottom of the rail indicates that the UI is connected to the local pChronicle server.

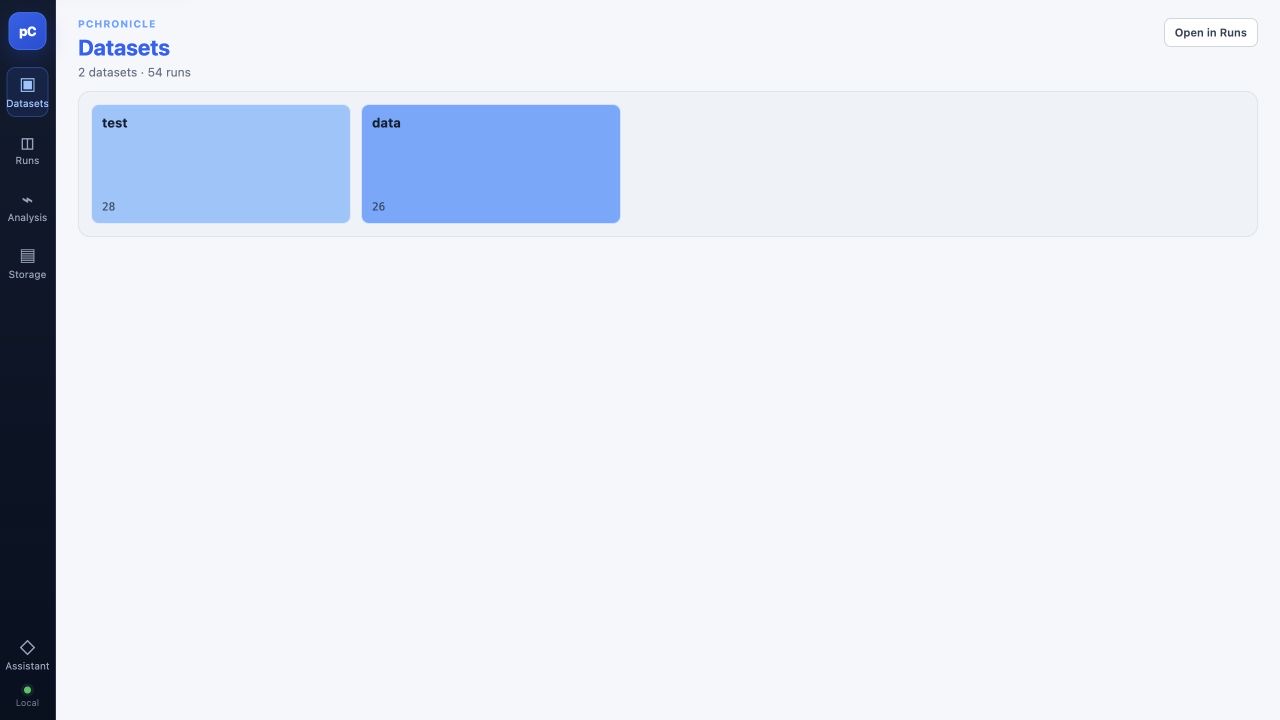

Datasets is the warehouse landing page after you leave Home. The warehouse root lists serve mounts. Inside a mount, each card is one child of the current path — the same listing as pchronicle ls. Dataset children show type and trajectory count from chronicle.manifest when present. Select a directory to go one level down. Select a Dataset to stay on that Dataset (Lance interiors are not a browse folder). Open in Runs opens the current query root as a Snapshot; a plain directory is a virtual dataset of nested Datasets and JSON.

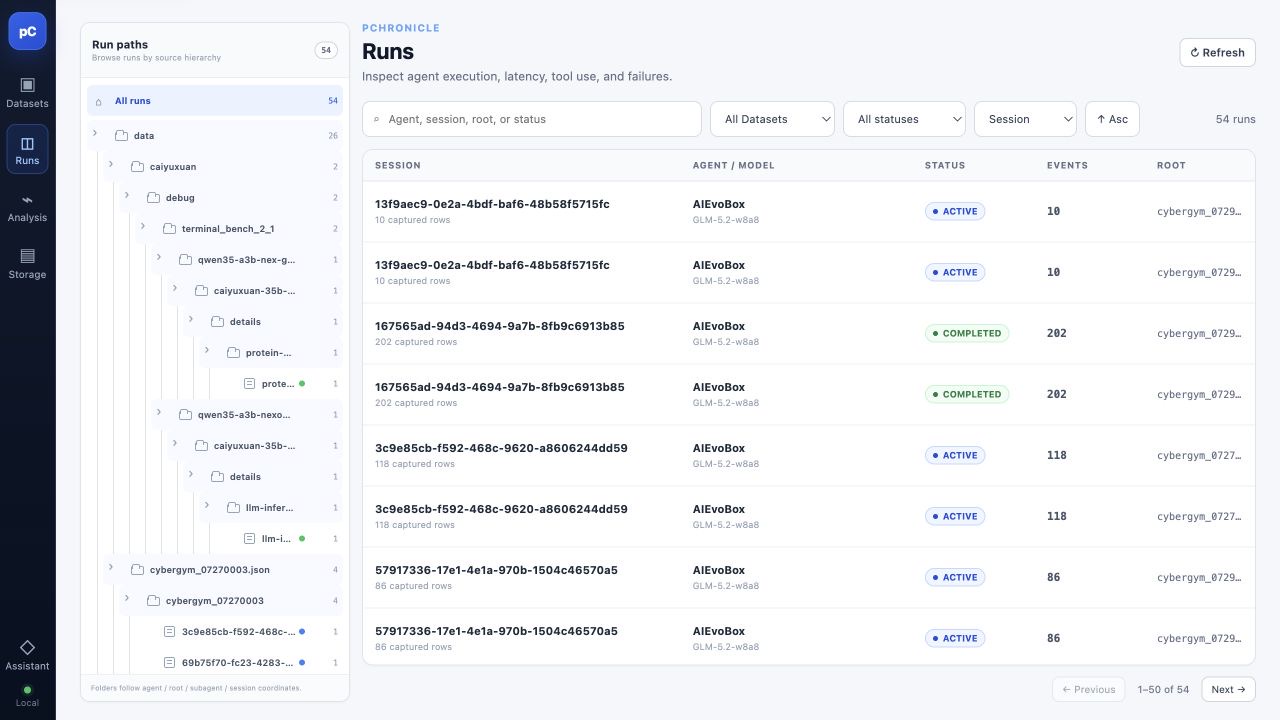

Browse and filter Runs¶

The Runs page combines a path tree and a result table. Run paths is built from run summaries (the import-path tree). It is not the Datasets ls listing.

1. Select a Dataset, folder level, or Session in Run paths. The number at the right of a node is the number of Runs below it.
2. Search for an Agent, Session, root, or status. Use the adjacent controls to constrain Dataset and status, then choose the sort field and direction.
3. Read Session, Agent / Model, status, event count, and root in the table. Select a row to open its detail page.
4. Use Refresh after the underlying data changes. Use Previous / Next when the result spans several pages.

The path tree is useful for narrowing the hierarchy before applying text and status filters. For example, select data and then the status you need, or paste a known Session ID directly into the search box.

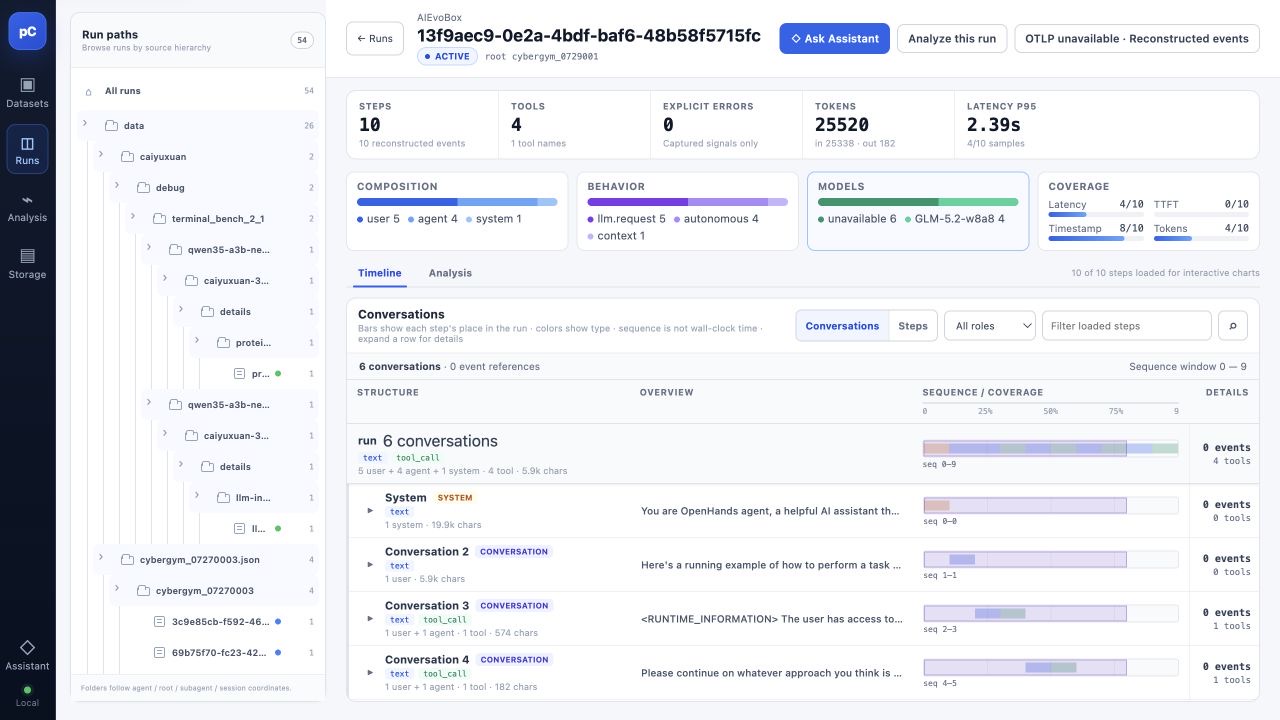

Read one Run¶

The Run page has three layers:

• The header identifies the Agent, Session, status, and root. Ask Assistant and Analyze this run carry the current Run into another workspace.
• Summary cards show Steps, Tools, Explicit errors, Tokens, and Latency P95. Composition, Behavior, Models, and Coverage make the Run makeup and available observability data visible at a glance.
• Timeline exposes recorded details. Switch between Conversations / Steps, filter by role or text, and expand a row to inspect complete text, tool calls, and event references. Analysis opens the Run-level analysis view.

Timeline bars show records at their positions in the Session sequence; they are not a wall-clock latency chart. Captured text, tool calls, and metrics remain usable.

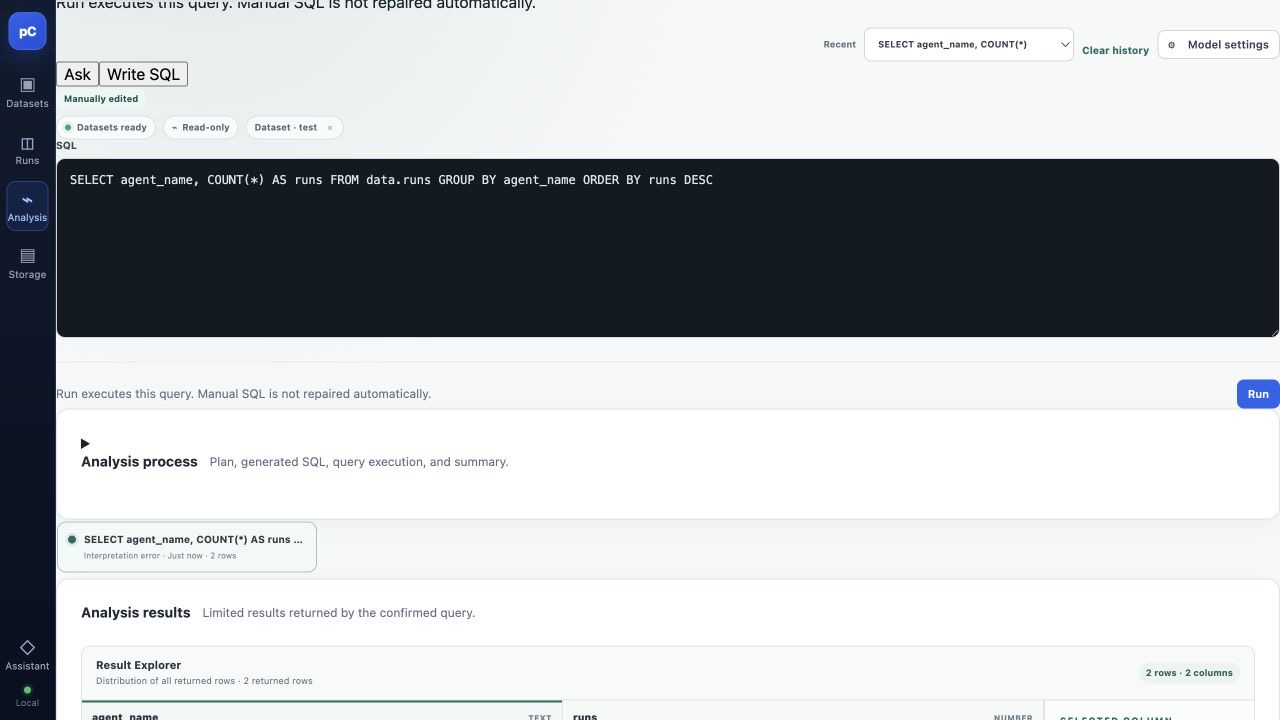

Analyze Datasets¶

The left panel lists the queryable tables and fields for each Dataset. A mount name is also its SQL schema, so this example exposes test.runs, data.runs, and related tables.

Choose one input mode:

• Ask accepts a natural-language question. Configure an OpenAI-compatible model in Model settings first. pChronicle creates an analysis plan and then executes a size-limited, read-only query.
• Write SQL executes SQL directly. Handwritten SQL is not repaired by the model, so confirm exact column names in the schema panel.

For example, count Runs by Agent in data:

SELECT agent_name, COUNT(*) AS runs
FROM data.runs
GROUP BY agent_name
ORDER BY runs DESC

Result Explorer shows rows, column types, missing rates, and the distribution of the selected column. Results are limited by the row and size limit displayed by the UI. If optional model interpretation fails, returned SQL rows and column profiles remain available; fix the model settings or retry the summary without discarding the results.

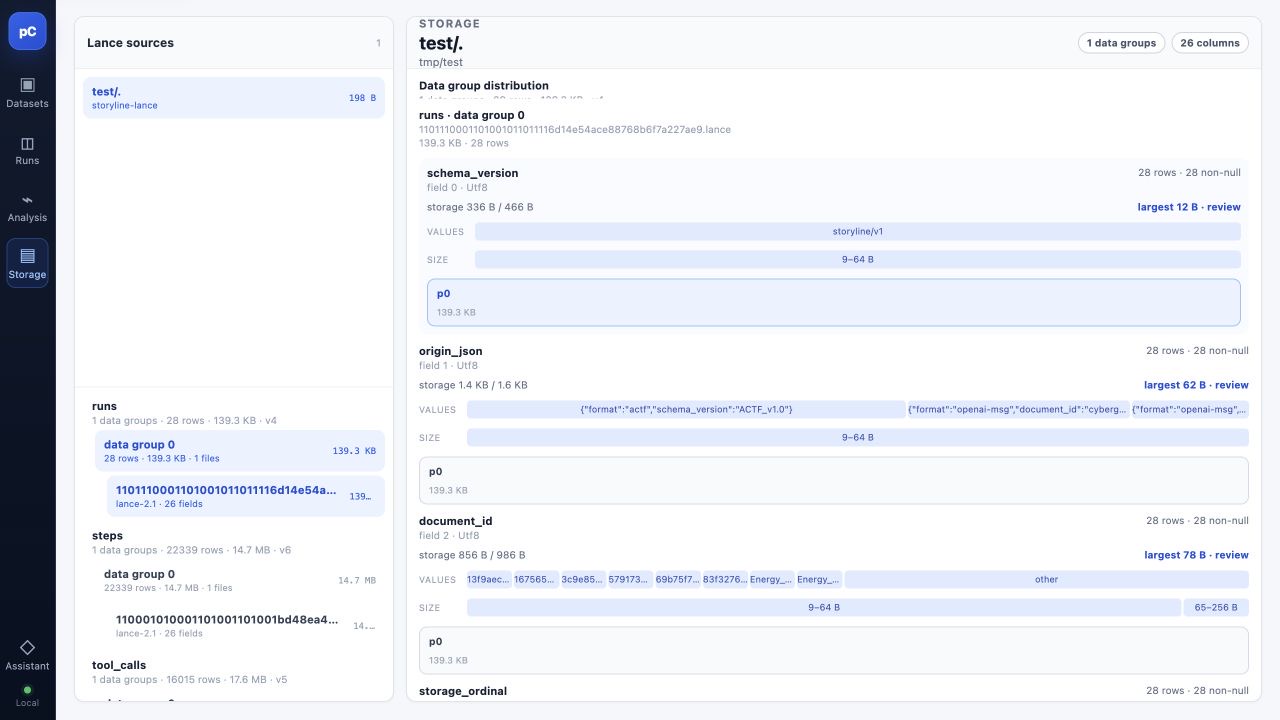

Inspect Lance storage¶

Storage is an advanced diagnostic surface, not a prerequisite for browsing Runs. The left panel shows Lance tables and their data groups by Dataset. The right panel profiles row counts, non-null counts, encoded storage size, value distribution, and size distribution for each column. Use it to determine:

• which table or column consumes the most storage;
• whether a column is mostly missing or has a suspicious distribution;
• whether a Dataset has a stored projection ready for analysis.

This page inspects the existing layout. It does not expose compaction, rewrite, or maintenance operations.

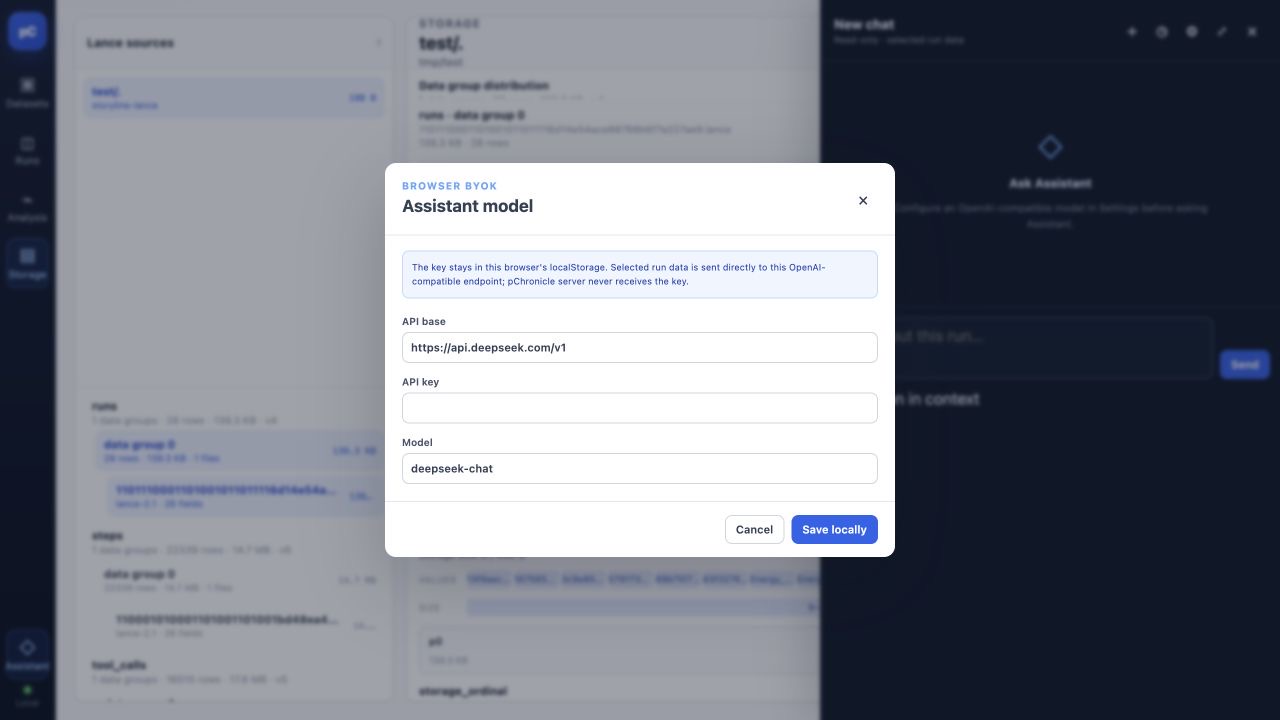

Configure Assistant¶

1. Open Assistant from the left rail, then select the settings gear.
2. Enter the OpenAI-compatible API base, API key, and Model.
3. Select Save locally, return to a Run, and use Ask Assistant.

This is browser BYOK. The key stays in this browser's localStorage; selected Run data is sent directly from the browser to the configured model endpoint, and the pChronicle server never receives the key. Do not save a key in an untrusted or shared browser profile. Clearing this site's browser data also clears the setting. Assistant is labeled Read-only · selected run data and does not rewrite the Dataset.

With pchronicle serve --catalog-config, data APIs require authentication and show only datasets granted to the user. Open Keys on the left rail and enter the Directory user access key and secret key before browsing data. Those values are stored in localStorage and sent to this pchronicle server as x-pchronicle-access-key and x-pchronicle-secret-key on data requests. They authorize which Directory paths this browser may open; they are not the object-store backend keys.

Troubleshooting¶

127.0.0.1:9980 is already in use¶

Choose another loopback port:

./target/release/pchronicle serve tmp/test/ data/ --listen 127.0.0.1:9981

Dataset names are not what you expected¶

Multiple bare paths derive names from their last path component. Use NAME=DATASET, such as evals=data/, to make the UI name and SQL schema stable.

Ask or Assistant cannot send¶

Open Model settings or the Assistant settings gear and configure a working OpenAI-compatible endpoint, key, and model. Use Write SQL in Analysis when no model is needed.

SQL reports a missing field¶

Select the target table in Analysis and confirm the field name in the left panel. The mount name is the schema. The UI requires you to fix and rerun handwritten SQL; it does not ask a model to rewrite it.

The Dataset changed but the UI still shows old data¶

Return to Runs and select Refresh. pChronicle replaces the readable view only after the replacement is ready; a failed refresh leaves the previous view available.

For all server options, see Serve Datasets locally. For exact CLI arguments, see the pchronicle reference.
